ImportSourceConfig Reference

ImportSourceConfig is the settings asset for one import job. It stores the raw text source, target asset, selected pipeline components, backup/execution policy, and internal state for incremental skip.

Create it through the menu:

Create > Json Data Importer > Import Source Config

Usually a developer assigns targetAsset, source provider, and source-specific fields, then presses Auto in the inspector. Auto-fill selects compatible profile/parser/apply strategy/diff/fingerprint components when the target asset supports the auto path.

Required Fields By Mode

Preview, Validate, and Apply all start by building preview. The table below shows what must be configured, either explicitly or through a compatible auto/default resolver.

Field Preview Validate Apply
Source provider Required Required Required
Target asset Required Required Required
Parser Required Required Required
Diff engine Optional Optional Optional
Fingerprint builder Optional Optional Required for incremental skip
Backup History No No Required when backup capture is enabled

Source And Target Selection

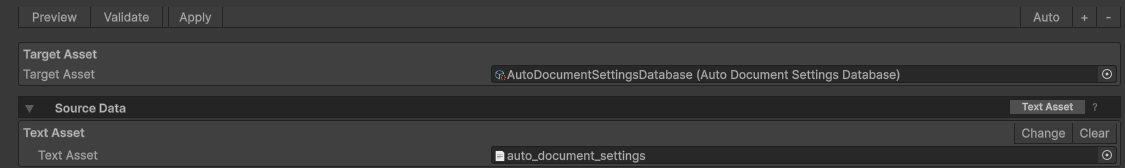

sourceProvider

Source Data field

Stored in code as private [SerializeReference] IImportSourceProvider sourceProvider. Shown in the inspector as Source Data.

The provider is responsible only for reading raw source text. It does not decide whether the content is JSON, CSV, or another text format. IImportSourceProvider.ReadAsync(...) returns ImportSourceData; the pipeline consumes ImportSourceData.RawContent as a string, and parsing is handled later by selectedParserId.

Built-in options:

Text Asset
File Path
HTTP

For Text Asset, assign a text TextAsset containing the raw import payload. The file can contain JSON, CSV, or any other format for which a compatible parser exists. If provider is not assigned, the job finishes as invalid source provider. If Text Asset is selected but the TextAsset reference itself is missing, the job finishes as missing source.

For File Path, assign a path to a text file outside or inside the Unity project. For HTTP, assign a URL and optional request settings.

If data does not come from a built-in source, use a custom IImportSourceProvider: Google Sheets, an internal API, generated content, decrypted content, etc. The provider only needs to return raw text in ImportSourceData.RawContent; source-specific metadata such as SourceDescriptor and FingerprintSha256 can be filled for diagnostics and incremental state.

See Custom IImportSourceProvider for implementation requirements and an example provider.

targetAsset

Unity asset that import data will be applied to.

The assigned target asset affects:

If targetAsset is not assigned, the job cannot even build preview and finishes as MissingTarget.

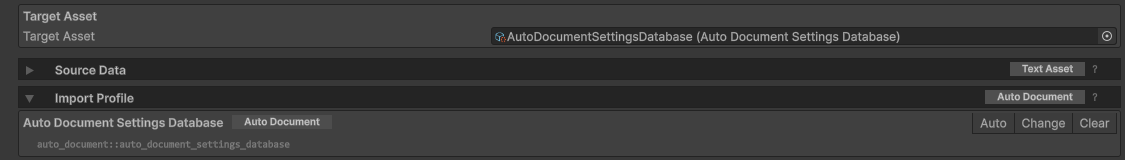

preferredTargetTypeId

Import Profile field

Stable id of the selected import profile/adapter. This is not a display name, but a technical id.

An import profile is the contract between an import job and a target asset. It defines which target type is being imported, which entry type the parser must produce, how target entries are read and written through the target adapter, how backup payloads are encoded, and which apply strategy is used by default.

Do not confuse this with executionProfile: the import profile chooses the target/data contract, while executionProfile only controls run policy such as backup, validation failure behavior, fingerprinting, and incremental skip.

Examples:

auto_document::auto_document_settings_database
auto_list::plain_items_database
auto_direct_fields::direct_fields_database
hard_json_station_profile

If the field is empty, the resolver selects the first compatible profile. If there is only one compatible profile, the field can be left untouched. If there are several, select the desired profile in the inspector so the config is stable and does not depend on discovery order.

Related profile documentation:

Pipeline Selection

These fields define which pipeline components are used after source data is read.

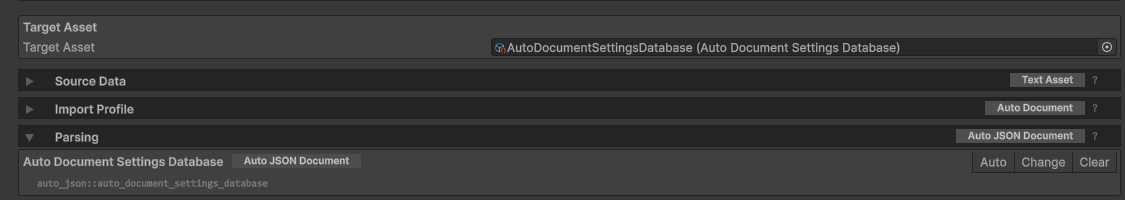

selectedParserId

Parsing field

Id of the parser that turns raw source text from ImportSourceData.RawContent into entries of the required EntryType.

If the field is empty, the resolver first tries the auto parser for the target. For an auto document target, this is:

auto_json::<targetTypeId>

If auto parser is impossible and selectedParserId is empty, the job fails: parser is not selected and no auto parser was found. See Custom IImportParser when the source shape needs custom parsing.

CSV is handled as a parser choice over the same raw text source model. A .csv TextAsset or File Path source can use the auto CSV parser:

auto_csv::<targetTypeId>

For example:

auto_csv::plain_items_database

Auto-fill can prefer the auto CSV parser when the configured source points to a .csv file. For HTTP, Google Sheets, generated content, or any custom source provider that returns CSV text without a file path, select the auto CSV parser explicitly or provide a custom parser.

Fill the field explicitly when:

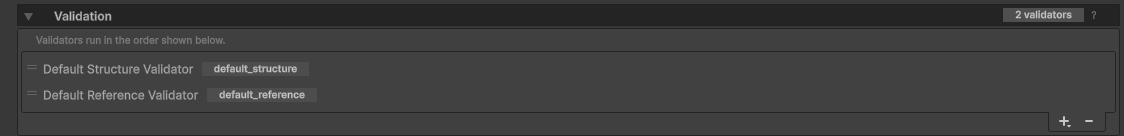

selectedValidatorIds

Validation field

List of validator ids that run during preview, validate, and apply flow.

Validation checks parsed source entries before they are applied to the target asset. Validators receive the prepared source entries, current target entries, target/profile metadata, identity strategy, and reference lookup context, then return ImportValidationMessage diagnostics. Error diagnostics can block Validate and Apply when fail policy is enabled; warning diagnostics stay visible but do not block by themselves.

Default list:

default_structure
default_reference

If the list is empty, validation is disabled and preview gets a warning that validators are not configured. If an id is not found, duplicated, or incompatible with entry type, the job fails during pipeline resolution.

Validator order only affects diagnostics order. Validators read source/target entries and return diagnostics. See Custom Validator for project-specific checks.

Related validation documentation:

selectedDiffEngineId

Diff Engine field

Id of the diff engine that builds preview changes.

A diff engine compares prepared source entries with current target entries and returns preview changes such as added, updated, removed, and unchanged entries. It can also return diff diagnostics for comparison problems. Diff is for preview/reporting: it does not parse source data, validate business rules, change the target asset, choose the apply strategy, or decide incremental skip.

Usually:

default_diff

The current resolver does not create a diff engine when the field is empty. In that case, preview is built without diff changes and adds a warning that diff is disabled. For normal preview, select a compatible diff engine through Auto.

A custom diff engine is used when standard field/identity comparison is not enough. See Custom Diff Engine.

Related diff engine documentation:

selectedFingerprintBuilderId

Fingerprint Builder field

Id of the fingerprint builder that computes canonical source/target fingerprints.

A fingerprint builder turns a set of entries into a deterministic fingerprint string. The runner uses it to fingerprint prepared source entries and current target entries, then compares those values with lastApplied* state to decide whether Apply can be skipped as unchanged. A fingerprint builder does not parse source data, validate records, build preview diff, write the target asset, or decide apply strategy; it only defines what data counts as relevant for change detection.

Usually:

canonical_fingerprint

If the field is empty, a fingerprint builder is not created. If executionProfile.enableFingerprinting == true, preview adds a warning that fingerprinting is disabled because no fingerprint builder is configured. Without fingerprints, incremental skip cannot reliably skip unchanged apply.

Fill the field through Auto when you want to use incremental skip and last applied state. See Custom Fingerprint Builder when canonical fingerprints need custom rules.

Related fingerprint documentation:

selectedApplyStrategyId

Apply Strategy field

Id of the apply strategy that builds final entries before writing to the target.

An apply strategy decides how prepared source entries and current target entries become the final entry list. For example, it can replace everything, merge by identity, patch only existing entries, or append only new entries. It does not write to the Unity asset directly; after BuildFinalEntries(...) returns, the selected target adapter writes the final entries through TargetAdapter.SetTargetEntries(...).

Examples:

replace_all
merge_by_identity
patch_existing_only
append_new_only
one_class_replace_all
one_class_merge_by_identity
one_class_patch_existing_only
one_class_append_new_only

Runtime resolution order:

1. ImportJobDefinition.OverrideApplyStrategy, when supplied by code.
2. selectedApplyStrategyId, when it is not empty and ImportApplyStrategyRegistry finds the id.
3. IImportProfile.GetDefaultApplyStrategy() from the resolved profile.
4. Failed, if no strategy is resolved.

If selectedApplyStrategyId is empty, the runner uses the default strategy from the resolved profile. If selectedApplyStrategyId is set but the id is no longer registered, runtime falls back to the profile default strategy. If that fallback is also missing, apply fails before changing the target asset.

For auto document/direct-fields, a one-class strategy is usually needed; for collection targets, a collection strategy is usually needed. Custom profiles can provide a default strategy through IImportProfile.GetDefaultApplyStrategy(); see Custom IImportProfile.

Related apply strategy documentation:

Backup And Execution

backupHistory

Backup History field

Asset where backup snapshots are saved before apply.

If backup capture is enabled, backupHistory is required. Without it, apply fails before changing the target asset:

Backup capture is enabled, but Backup History asset is not assigned.

If backup capture is disabled in executionProfile or a runtime override, backupHistory can be empty, but restore for that run will be impossible. Safe apply, restore, and lastApplied* state are described in Backup / Restore / Incremental State.

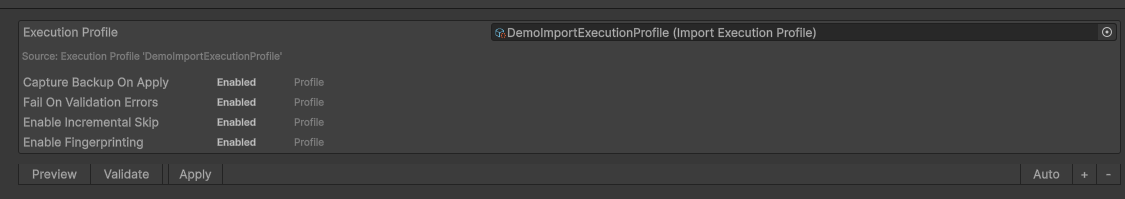

executionProfile

Execution Profile field

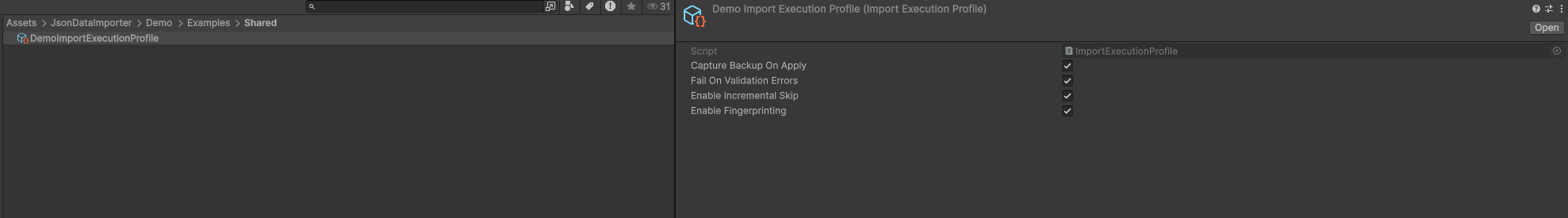

Execution Profile settings

ImportExecutionProfile asset for preview/validate/apply behavior.

Create the asset through the Unity menu:

Create > Json Data Importer > Import Execution Profile

It is assigned to ImportSourceConfig.executionProfile and affects how ImportJobRunner behaves in Preview, Validate, and Apply modes. The profile does not choose target, parser, diff engine, fingerprint builder, or apply strategy; it only controls execution policy.

Important: if executionProfile is not assigned, all boolean policy values are treated as true. With default settings, Apply requires backupHistory because captureBackupOnApply is also true.

captureBackupOnApply = true
failOnValidationErrors = true
enableIncrementalSkip = true
enableFingerprinting = true

All boolean settings use the same priority order:

ImportJobDefinition override / ImportBatchRunOptions override
-> ImportSourceConfig.executionProfile
-> default true

That means a batch run or manual code can temporarily override the profile value. If no override is set and executionProfile is not assigned, true is used.

captureBackupOnApply

Enables backup snapshot creation before real Apply.

If true, before changing the target asset, the runner calls backup capture through ImportSourceConfig.TryCaptureBackup(...). For this, the config requires an assigned backupHistory; otherwise apply fails before target changes. The number of saved snapshots is limited by ImportSourceConfig.maxBackupHistory.

If false, apply runs without creating a backup. This removes the requirement to assign backupHistory, but rollback through backup history will be impossible for that run.

This field does not affect Preview or Validate.

failOnValidationErrors

Controls whether validation errors block further execution.

If true, Validate mode returns a failure status when validation errors exist, and Apply mode stops before changing the target asset. Validation warnings do not block apply by themselves.

If false, validation errors remain in preview/result diagnostics, but validate/apply can continue. This is useful for diagnostic runs or migrations where errors need to be visible without stopping the whole job.

enableIncrementalSkip

Allows apply to be skipped when data has not changed.

If true, before apply the runner compares current canonical fingerprints with the last successful apply state in ImportSourceConfig. If source fingerprint, target fingerprint, target profile id, and apply strategy match, the job gets status Skipped, the target asset is not changed, and no backup is created.

If false, the runner always reaches the apply step after preview/validation checks, even when fingerprint state says data did not change.

The field is effective only when fingerprinting is enabled and fingerprints were computed. If fingerprints are missing, incremental skip does not work.

enableFingerprinting

Enables canonical fingerprint calculation for source and target.

If true, preview/apply tries to resolve a fingerprint builder, compute canonical source/target fingerprints, and save last applied state after successful apply. That state is later used by enableIncrementalSkip.

If false, the fingerprint builder is not used, canonical fingerprints are not computed, and incremental skip effectively has no data to compare. After apply, last applied state can be cleared because the runner cannot reliably confirm source/target state.

Disabling fingerprinting makes sense only when fingerprint calculation is too expensive, unsupported for a specific target, or incremental skip is intentionally unnecessary for the run.

maxBackupHistory

Maximum number of backup snapshots stored in the assigned backupHistory.

Used only by TryCaptureBackup(...). If backup capture is disabled or backupHistory is not assigned, the field has no effect.

Practical default:

10

Internal Incremental State

These fields are visible in the serialized asset, but normally are not edited manually.

lastAppliedSourceFingerprint

Canonical fingerprint of source entries after the last successful apply.

Used together with target fingerprint, profile id, and apply strategy id. If source data changes, the fingerprint changes, and the next apply will not be skipped.

lastAppliedTargetFingerprint

Canonical fingerprint of target entries after the last successful apply.

Needed so incremental skip does not skip apply when the target asset was manually changed after the previous import.

lastAppliedProfileTargetTypeId

TargetTypeId of the profile used during the last successful apply.

If the config switches to another profile/adapter, incremental skip does not work even when fingerprints match.

lastAppliedApplyStrategyId

Id of the apply strategy used during the last successful apply.

If the strategy changed, the next apply runs as changed because final entries can be built differently.

lastAppliedAtUtc

UTC timestamp of the last successful apply in round-trip ISO 8601 format.

This is a diagnostic field. It does not participate in incremental skip comparison.

When State Is Updated Or Cleared

After successful apply, the runner tries to compute final source/target fingerprints.

If fingerprints are computed, the config updates:

lastAppliedSourceFingerprint
lastAppliedTargetFingerprint
lastAppliedProfileTargetTypeId
lastAppliedApplyStrategyId
lastAppliedAtUtc

If fingerprints cannot be computed, the runner clears last applied state. After that, the next apply runs as changed because reliable fingerprint state is missing.

Clearing the last applied state forces the next Apply to run instead of being skipped. It does not disable incremental skip for later runs. Manually editing fingerprint strings can cause an incorrect skip.

Short Checklist
